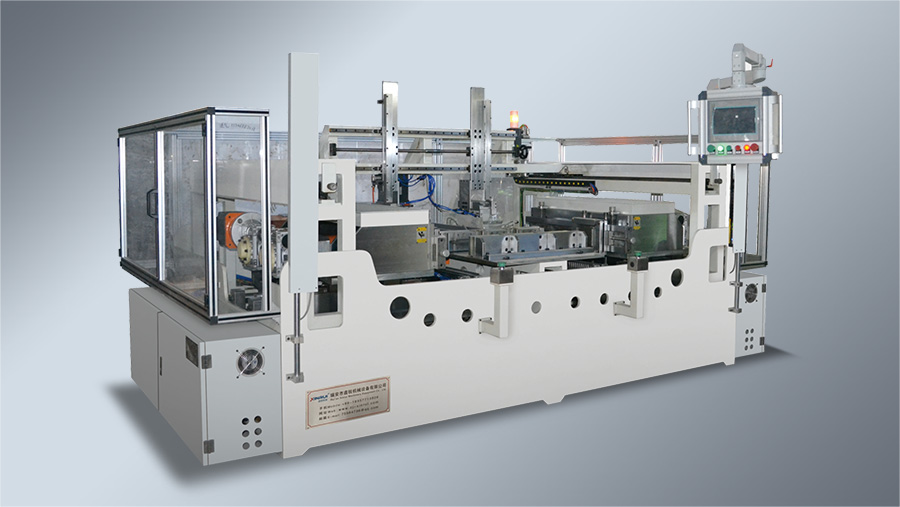

Multirow Radiator Core Builder(Click here to watch video)

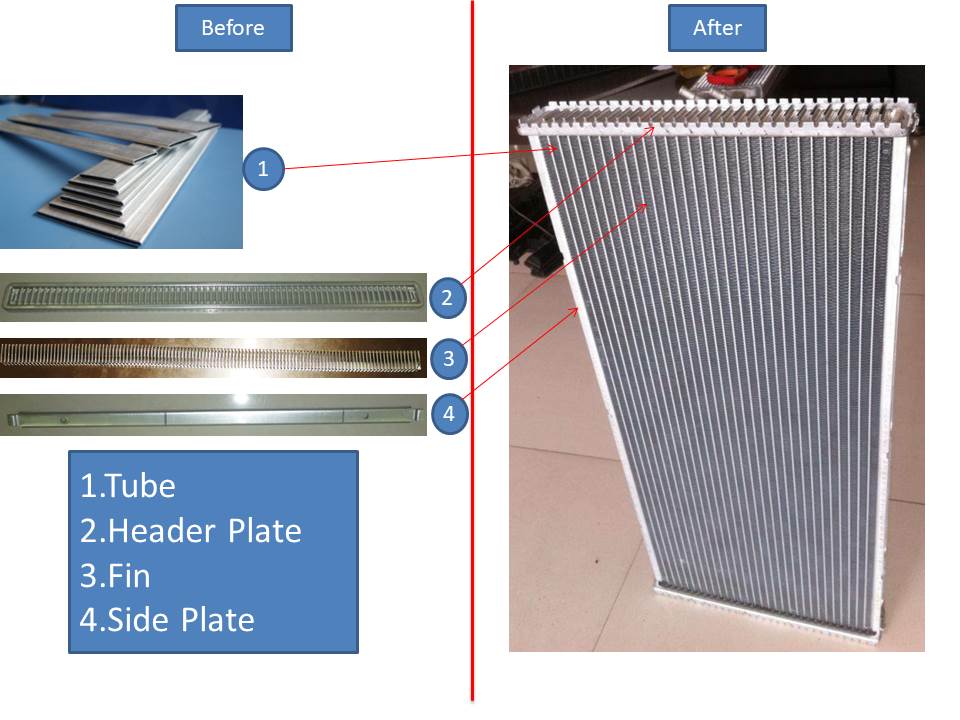

To assemble flat tube, fin, header plate, side plate and brazing fixture into radiator core.
Automatically lay for multi row flat tubes. Equipment consists of pneumatic system, electrical system, servo system etc. and is with good appearance and precise assembly dimension.It enables for fast model change, easy operation and also is with automatic tube end flaring function.
|
Description
|
|
Core Dimension
|
Core height direction:350-780mm
Core width direction:200-680mm
|
|
Flat tube layers
|
Multi-row
|
|
Tube laying mode
|
Automatic Feed Into Material Library/Manual
|
|
Flat tube flaring mode
|
Automatic/Optional
|
|
Fin laying mode
|
By fin tray / manual
|
|
Machine running time
|
Around 45 s
|
|
Drive mode
|
Pneumatic/ Servo
|
|
Overall dimension
|
2800*2200*1800mm
|
|
Weight
|
2.2 T
|
