  • Radiator Core Builder (Manual Tube Laying)
  • Radiator Core Builder (Manual Tube Laying)
Radiator Core Builder (Manual Tube Laying)Radiator Core Builder (Manual Tube Laying)

Radiator Core Builder (Manual Tube Laying)

Radiator Core Builder (Manual Tube Laying)(Click here to watch video)

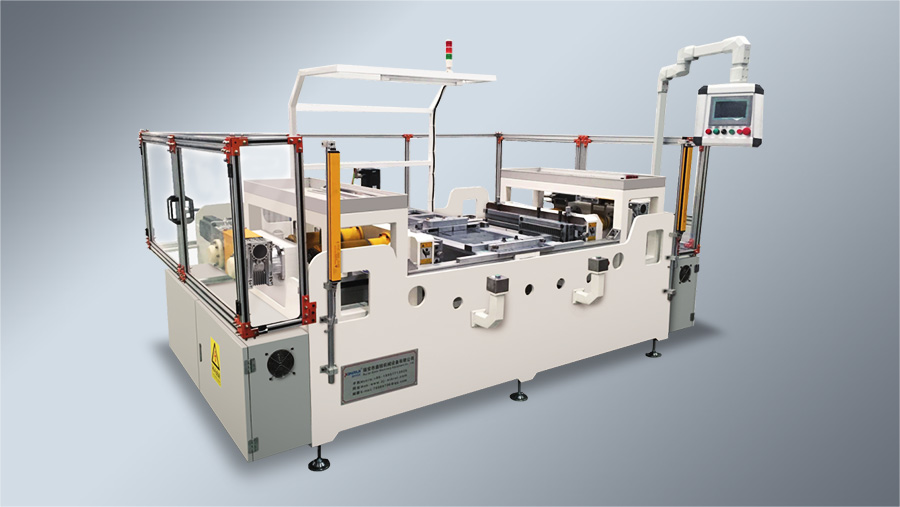

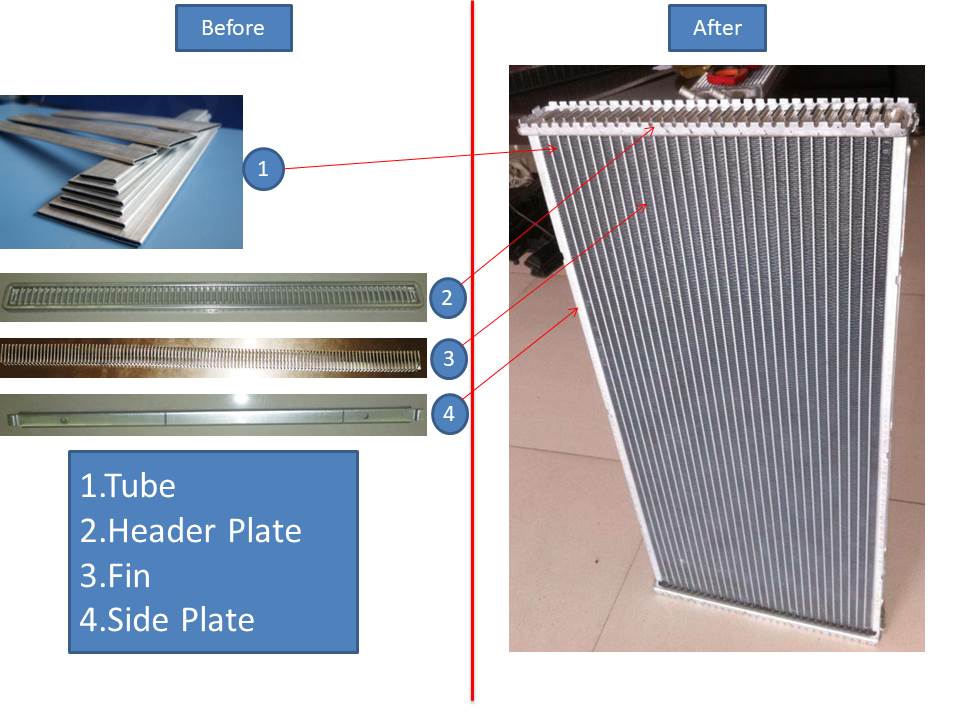

To assemble flat tube, fin, header plate, side plate, brazing fixture etc into radiator core.

Equipment consists of pneumatic system, electrical system, servo system etc. and is with good appearance and precise assembly dimension. It enables for fast model change, easy operation and also is with automatic tube end flaring function.


Description

Core Dimension

Core height direction:350-780mm

Core width direction:200-680mm

Flat tube layers

1 layer

Tube laying mode

Manual

Flat tube flaring mode

Automatic/Optional

Fin laying mode

By fin tray / manual

Machine running time

Around 20 s

Drive mode

Pneumatic/ Servo

Overall dimension

2300*1800*1800mm

Weight

2.2 T
