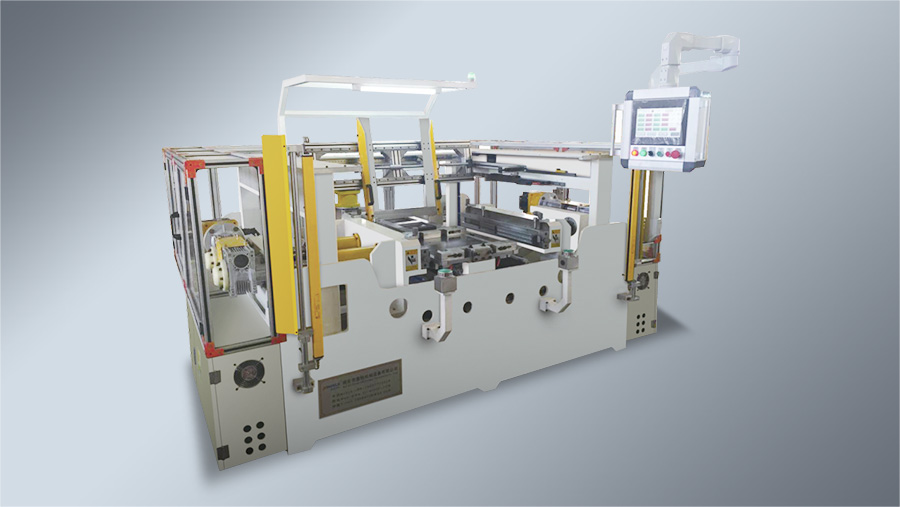

Radiator Core Builder (Auto Tube Laying, Manual Push Tube Storage Rack)(Click here to watch video)

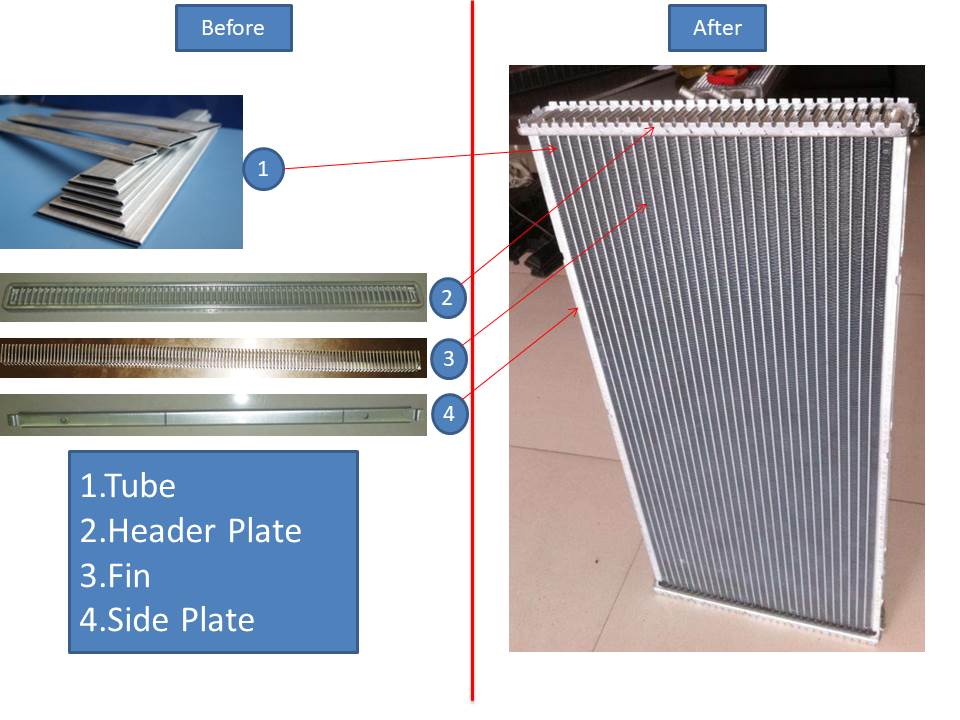

Radiator Core Builder can assemble flat tube, fin, header plate, side plate, brazing fixture etc into radiator core.
Radiator core builder of pneumatic system, electrical system, servo system etc. and is with good appearance and precise assembly dimension. It enables for fast model change, easy operation and also is with automatic tube end flaring function.
it can use for CAC core assembly ,radiator core assembly,heater exchange core assembly.
machine use plc control , you can set up the data from the touch screen. it can use for different model.
|
Description
|
|
Core Dimension
|
Core height direction:350-780mm
Core width direction:200-680mm
|
|
Flat tube layers
|
1 layer
|
|
Tube laying mode
|
Automatic Feed Into Material Library/Manual
|
|
Flat tube flaring mode
|
Automatic/Optional
|
|
Fin laying mode
|
By fin tray / manual
|
|
Machine running time
|
Around 25 s
|
|
Drive mode
|
Pneumatic/ Servo
|
|
Overall dimension
|
2300*1800*1800mm
|
|
Weight
|
2.2 T
|
