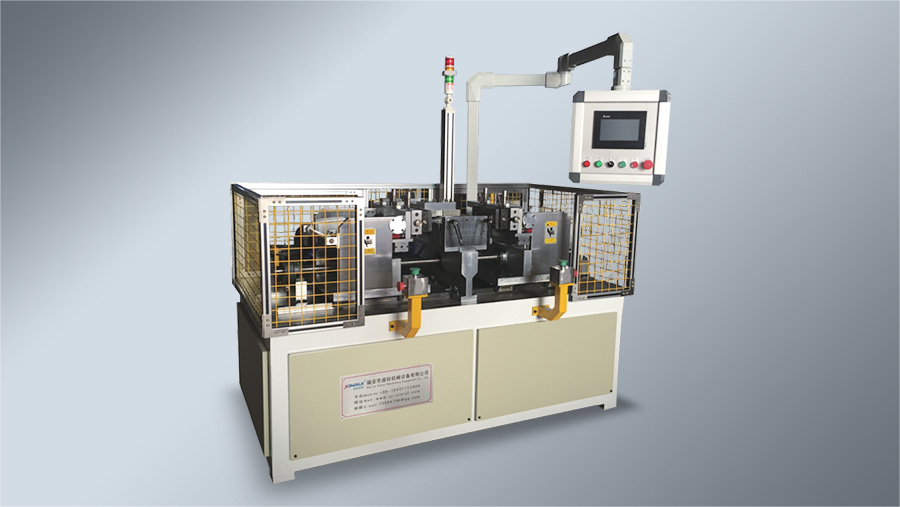

Heater Core Assembly MachineHeater Core Assembly Machine

Heater Core Assembly Machine

Heater Core Assembly Machine Core Assembly Machine

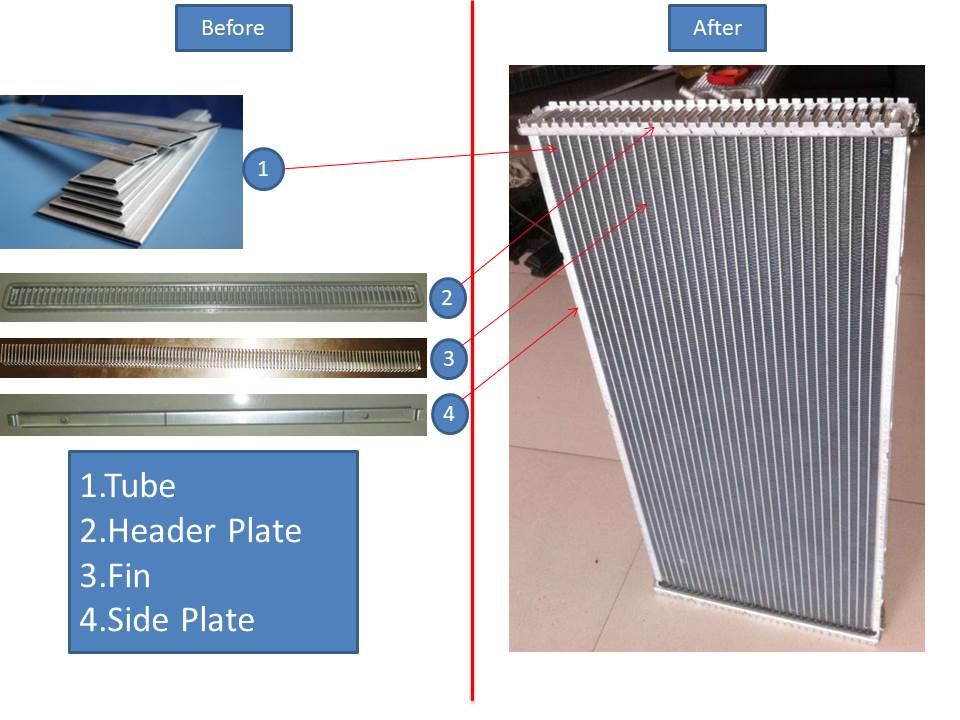

To assemble flat tube, fin, header plate, side plate and brazing fixture into heater core.

Equipment consists of left&right header plate positioning fixture, assembly work platform ,flat tube positioning, flexible chain, comb teeth, side plate tooling positioning, pneumatic system, electrical system, servo system etc.


Description

Core Dimension

Core height direction:350-780mm

Core width direction:200-680mm

Flat tube layers

1 layer

Tube laying mode

Manual

Flat tube flaring mode

Automatic/Optional

Fin laying mode

By fin tray / manual

Machine running time

Around 20 s

Drive mode

Pneumatic/ Servo

Overall dimension

1800*1100*1500mm

Weight

2.2 T
