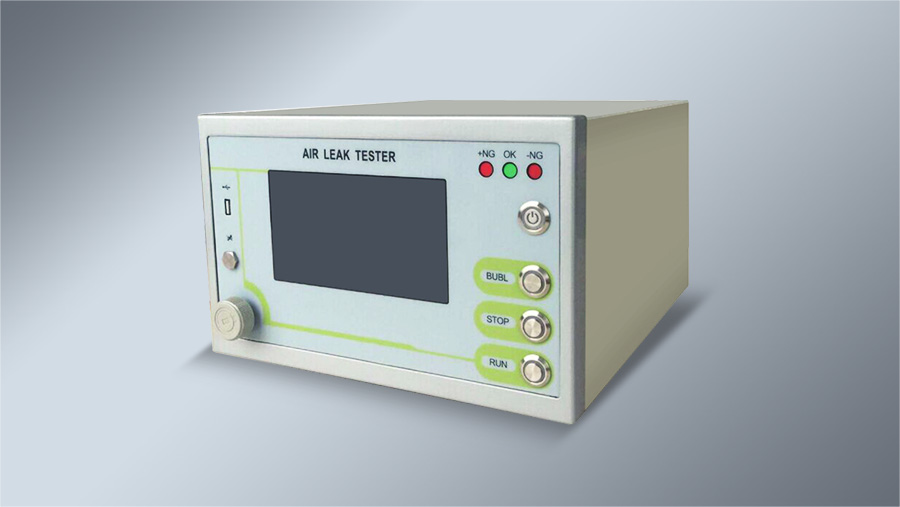

Leakage Tester

Leakage Tester

  • Leakage Tester

    Larqe 7 inch toUch screen display.

    With 32 channel multi-parameter storage,can easily do channel selection and parameters setting.

    Standard modelis with single station&double stations.Both can process manual&auto cycle test mode Double stations can perform automatic switch.

    With port RS232 level output&commUnication function,can connect scanners,bar code printer,PC,etc.

    With 10000 groups of testing data storage.can check test results per date,work number and workpiece number.


    Differential pressure type leakage test

    Differential pressure sensor

    Resolution display

    0.1Pa

    Sensor measuring range

    0~±2000Pa

    Sensor tolerated pressure

    13.8MPa

    Sensor error

    0.065%FS

    Direct pressure sensor

    Resolution display

    0.1kPa

    Measuring range

    Qc100 Model

    3~100kPa

    Qc300 Model

    5~300kPa

    Qc600 Model

    5~600kPa

    Qc1000 Model

    50~1000kPa

    Qc4000 Model

    50~4000kPa

    Sensor tolerated pressure

    Three times Pressure if sensor in full scale

    Sensor error

    ±1%FS

    Display unit

    Test Pressure

    kPa、kg/cm2、PSI、mbar、bar、Torr、mmH2O、mmHg

    Leakage amount

    Pa、Pa/s、mL/s、mL/min


    Direct pressure Leakage Tester

    Direct pressure sensor

    Resolution display

    0.1 kPa

    Measuring range

    0.0-20MPa

    Sensor tolerated pressure

    Three times pressure if sensor in full scale

    Sensor error

    ±1%FS

    Display unit

    Test Pressure

    kPa、kg/cm2、PSI、bar、mbar、torr、mmHg、mmH2O

    Leakaqe amount

    kPa、kg/cm2、PSI、bar、mbar、torr、mmHg、mmH2O、mL/min

    Leakage&test pressure upper limit

    20MPa


    Flow leakage tester

    Flow sensor

    Resolution display

    0.001mL/min

    Display range

    0~999.9999mL/min

    Sensor tolerated pmssum

    0.7MPa

    Leakage upper limit

    200.00L/min

    Sensor error

    ±1%FS

    Direct pressure sensor

    Resolution display

    0.1kPa

    Sensor measuring range

    0~600kPa

    Sensor tolerated pressure

    ±1%FS

    Sensor error

    Three times Pressure if sensor in full scale

    Display unit

    Test Pressure

    kPa、kg/cm2、PSI、bar、torr

    Leakaqe amount

    mL/min、mL/s、sccm、m3/h

    Pressure test ranae

    5~600kPa

    Data channel number

    32 groups(0~32)

    Display Refresh number

    20Hz

    Testing Cycle Time setting

    0~999 seconds,test time 1800 seconds

    Power

    AC220V±10%,50Hz

    Test pressure source

    Clean,dry ail,pressure between 100kPa and 600kPa

    Environment temperature

    Working temperature 5~40℃ Storage temperature-20~70℃
