Portable Type Tube Expansion Machine

Portable Type Tube Expansion Machine

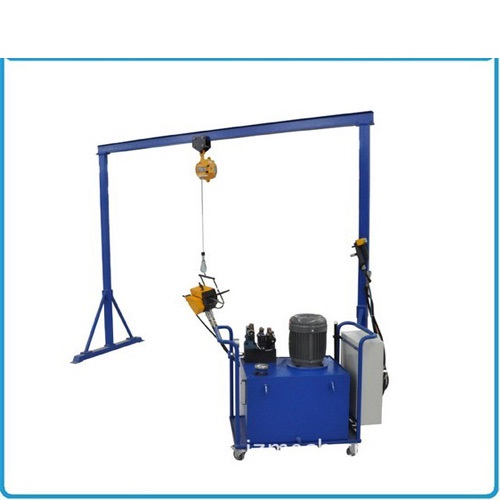

Portable Type Tube Expansion Machine The machine is comprised of expansion head, mouth expander, hydraulic station, electrical control box, gantry stand, and balancer. It is also equipped with 4 high pressure hoses and 2 control cables. The machine can manually expand the tube mouth and the tube inside.

Type

Portable Type

Heat exchanger specification

Usual copper tube outer diameter (mm)

7mm, 7.94mm,

9.52mm, 16mm

Normal fin thickness (mm)

12.7, 19.05, 21.65, 22, 32.91mm

Length (mm)

~7000

Tube row quantity

1~8

Max hole quantity per row (based on hole-to-hole distance at 25mm)

Decided by the product design

Expansion speed

Fast speed (m/min)

12.5

Slow speed (m/min)

Oil pump motor power (kw)

2.2

Oil cylinder diameter(mm)

Hydraulic oil

ISOVG32 (winter)

/ISOVG46(summer)

Lubrication oil

Mechanical oil ISOVG22-32
