fin press line

(Click here to watch video)

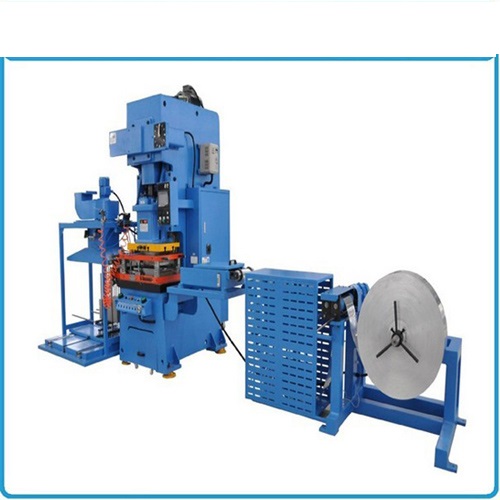

The fin press line is an automatic fin production line based on the latest Taiwan technology.
The fin press line consists of aluminum foil decoiling mechanism (photo-electric automatic decoiling), aluminum foil protection device, aluminum foil oiling device, single and double jump latest low-noise high speed precision press machine, high speed precision fin mold, latest guide bar type fin stacking device, waste material collection device, and electrical control system with HMI.

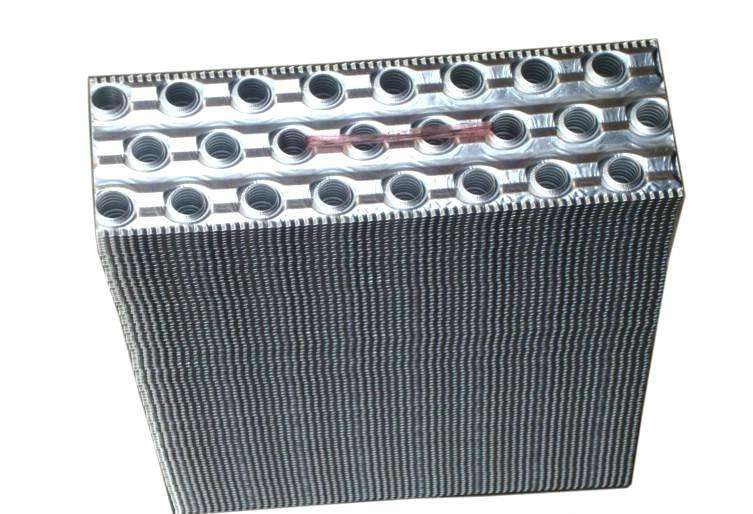

The fin press line can be used to produce the following fins:
Φ5*19.5*11.2*(6-24)R.
Φ7*21.0*12.7or20.5*12.7(12-24)R.
Φ7.94*22.0*19.05*(12-18)R.
Φ9.52*25.4*22.0or25.0*21.65*(12-18)R.
Φ10.2*20.0*15.5*(12-24)R.
Φ12.7*31.75*27.5*(6-12)R.
Φ15.88*38.0*32.91 or 38.1*22.2(6-12)R.
Φ19.4*50.8*38.1(4-8)R.
Φ20*34.0*29.5*(6-12)R.
Φ25*(4-6)R.

Item

Specification

CPC45

CPC65

CPC85

Capacity

KN

450

650

850

Nominal pressure Stroke

mm

1.5

1.5

1.5

Stroke of Slide

mm

40--60

40--60

40--60

Stroke

S.P.M

120--200

120--200

120--200

Max.die-set height

mm

270

290

290

Die Height Adjustments

mm

60

75

80

Distance between Uprights

mm

510

570

650

Size of Table(L-R8F-B)

mm

580*850/660*850

580*850/660*850

920*700

Thickness of Table

mm

80

80

80

Bottom Size of Slide(L-R*F-B)

mm

300*400

360*500

680*400

Main Motor power

KW

5.5

5.5

7.5

Width of Material

mm

310

310

360

Stack Length

mm

1200—2000

1200—2000

1200—2000

Collecting Height of Material Rolling

mm

600--800

600--800

600--850

Inner Diameter of Material Rolling

mm

Φ75/Φ150

Φ75/Φ150

Φ75/Φ150

Out Diameter od Material Rolling

mm

Φ850

Φ850

Φ850

Overall Dimension(L-R*F-B*H)

mm

7000*2500*2650

7200*2580*2950

7500*2630*3100

Total Weight

Kg

6500

7800

9500

Contact Us

Name: Yuan

Mobile:+86 15602916761(whatsapp/wechat)

Tel:+86-0599-5818919

Email:sales1@rcmbest.com
