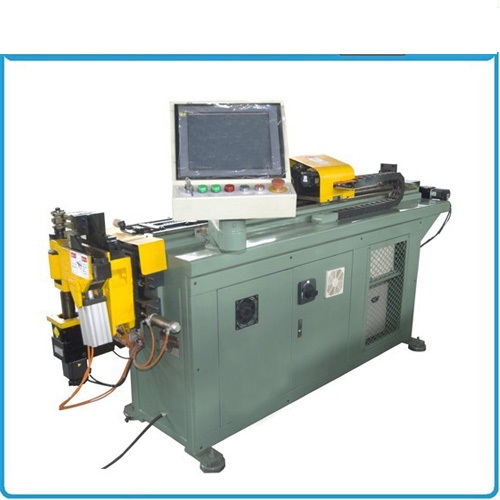

Numerical Control 3-dimensional Tube Bending Machine

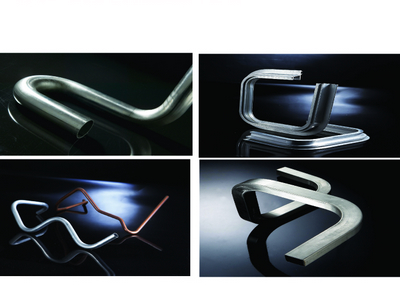

The machine is used to bend the tube to a 3 dimensional shape.

Model

WGJ15

WGJ30

WGJ50

Tube max outer diameter (mm)

19.0

32.0

50.8

Tube max wall thickness (mm)

1.5

2.3

3.5

Max bending radius (mm)

50

100

200

max bending angle (°)

185

185

185

Max feeding length per time(mm)

1400

1500

1500

Max total feeding length (mm)

2000

3000

4000

Running speed

Bending angle(°/s)

36~180

12~60

6~36

Feeding speed (mm/s)

100~1000

80~800

60~600

Rotating speed (°/s)

36~180

30~150

24~120

Power

Bending motor(kw)

1.0

3.8(or hydraulic)

10 (or hydraulic)

Feeding motor (kw)

0.75

1.0

1.0

Rotating motor(kw)

0.4

0.5

0.5

Total power(kW)

3.0

6.0(10.0)

13.0(18.0)

Power supply

3 phase 4 wires; AC380V; 50HZ
