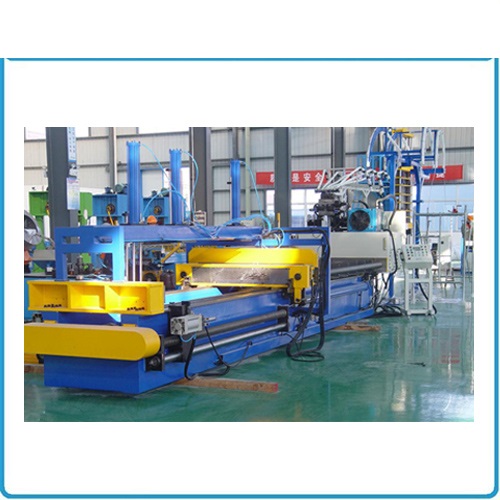

he machine can expand one side of the tube (tube inside and tube mouth) as well as edge-fold. This machine is used to expand U-tubes.
The machine can expand the tube inside and mouth and edge-fold the tubes on one side, and on the other side expand the tube mouth and edge-fold the tubes automatically. This machine is used for automatic bending of straight tubes.
|
Machine Type |
Numerical control horizontal tube expanding machine |
|||||
|
Heat exchanger specification |
Usual copper tube outer diameter (mm) |
7mm,7.94mm, 9.52mm,16mm |
||||
|
Normal fin thickness (mm) |
12.7mm,19.05mm,21.65mm,22mm, 32.91mm |
|||||
|
Length (mm) |
250～3000 |
|||||
|
Row quantity |
1～8 |
|||||
|
Max hole quantity per row(based on hole-to-hole distance 25mm) |
64 |
|||||
|
Expansion speed |
Fast speed (m/min) |
>4 |
||||
|
Slow speed(m/min) |
>0.7 |
|||||
|
Oil pump motor power (kw) |
11/15 |
|||||
|
Oil cylinder diameter(mm) |
160/180/200mm |
|||||
|
Hydraulic oil |
ISOVG32(winter)/ISOVG46(summer) |
|||||
|
Lubrication oil |
Mechanical oil ISOVG22-32 |
|||||
