Side Plate Auto Forming MachineSide Plate Auto Forming Machine

Side Plate Auto Forming Machine

Side Plate Auto Forming Machine

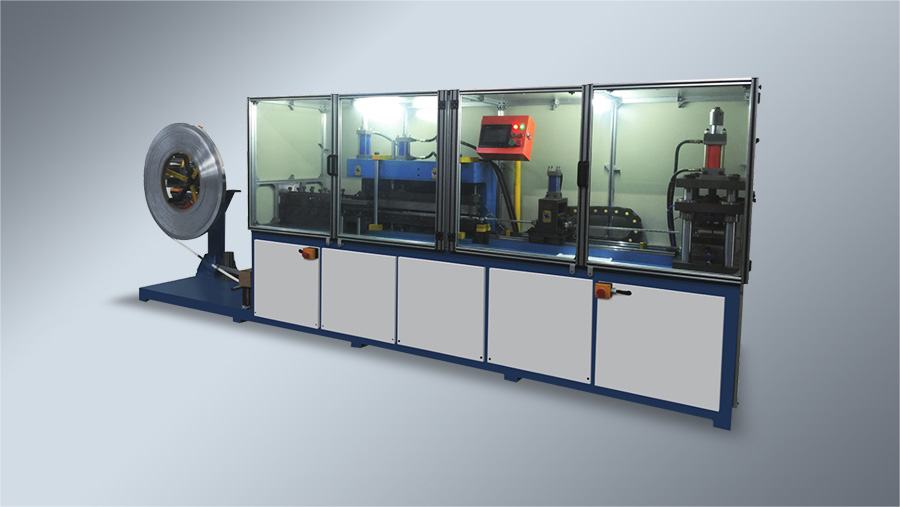

The machine can have the coiled strip to go through straightening device,edge forming,punching,pressing into arc structure at both ends and cut off automatically in accordance with the dimensions.

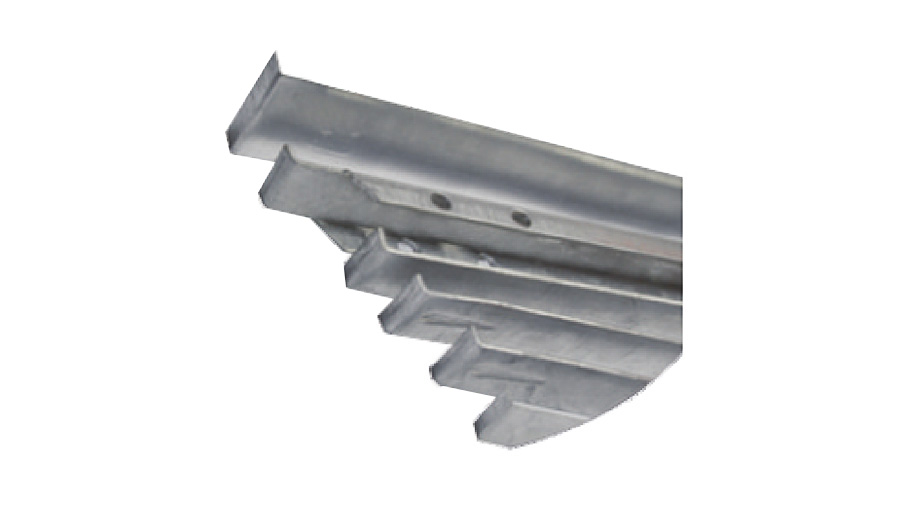

Per different type tooling to make different side plate.Simpie operation,high automation,stable and reliable forming quality.



Description

Workpiece specification

Punching,Flanging,Uslot forming/Bending,Cutting(as per drawing's requirement)

Workpiece length

100-1000mm

Alu strip width

Per Workpiece unfold size

Loading coil dimension

Lnner diameter:min.400mm

Outer diameter:max.1200mm

Plate Processed per time

1 pc/Time

Decolling/Feeding/Straightening

Automatic

Lubricating Way

Automatic

Production capacity

180 pcs/hour

Drive mode

Servo+Hydraulic+Pneumatic

Overall dimension

5200*1000*1700mm

Weight

3.8 T
