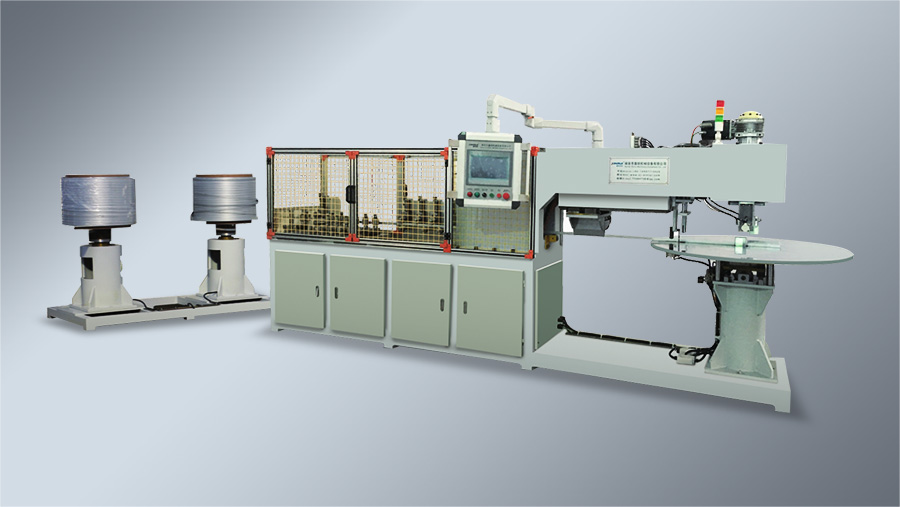

Automatic Tube Bending Machine(Click here to watch video)
To have the aluminum tubes coil go through decoiling,straightening,bending,necking down and cutting into the requi red bending tubes.
Through changing different tooling to bend for various flat tubes and data can be directly saved.It is consists of pneumatic system,electrical system and servo system.Bending dimension with high precision,efficiently protect flat tube surface and eventually ensu re forming quality stability and reliability.
|
Description
|
|
Workpiece Specification
|
as per customer's requirements
|
|
Workpiece length
|
as per customer's requirements
|
|
Flat tube specification
|
Thickness:1-3mm
Width:12-32mm
|
|
Max Bending Quantity
|
50 Bends
|
|
Flat tube coil dimension
|
Lnner diameter:Min.400mm
Outer diameter:Max.1200mm
|
|
Pipe Processed per time
|
1 pc/time
|
|
Decoiling/Feeding/Straightening/Bending/Cutting
|
Automatic
|
|
Lubricating Way
|
Automatic
|
|
Production capacity
|
Around 230 pcs/shift(as per actual workpiece dimension)
|
|
Drive mode
|
Servo+Pneumatic
|
|
Overall Dimension
|
6000*1300*1700mm
|
|
Weight
|
2.5 T
|
