Fully-automatic U-shape Hairpin Copper Tube Bending Machine/Hairpin Tube Bender

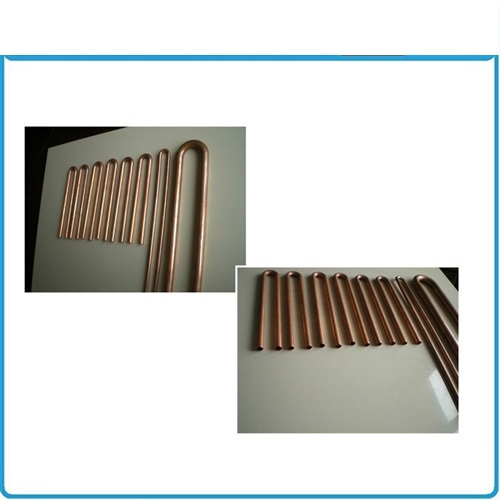

The machine is specially used for producing long U-shape hairpin copper tube on a large scale.

Machine Type

Fully-automatic long U-shape hairpin bending machine

Copper tube specification

Outer diameter(mm)

 5~12.7mm

Wall thickness (mm)

0.3~0.41

U-tube tube produced per time

1~6/1~7

U-tube length (mm)

Min.200~Max.1250/1650/2100/2600

Working cycle (s/times based on 1m length)

≤ 15

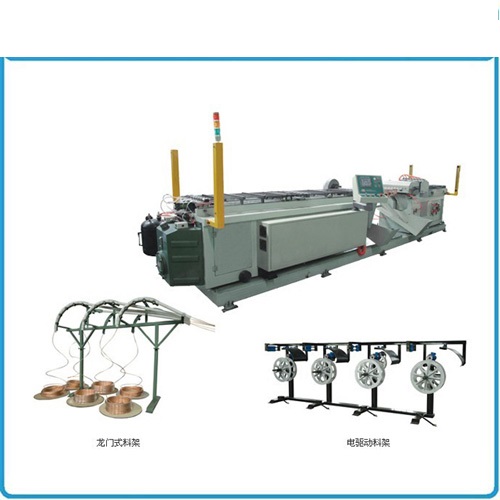

Coil stand

Gantry type/ double(single) working position

Electrical driven

Cutting motor power (kw)

1.5

Oil pump power (kw)

7.5

Hydraulic oil

ISOVG32 (winter)/ISOVG46(summer)

Lubrication oil

Mechanical oil  ISOVG22-32
