  • Tube-header Expansion Machine
  • Tube-header Expansion Machine
Tube-header Expansion MachineTube-header Expansion Machine

Tube-header Expansion Machine

Tube-header Expansion Machine

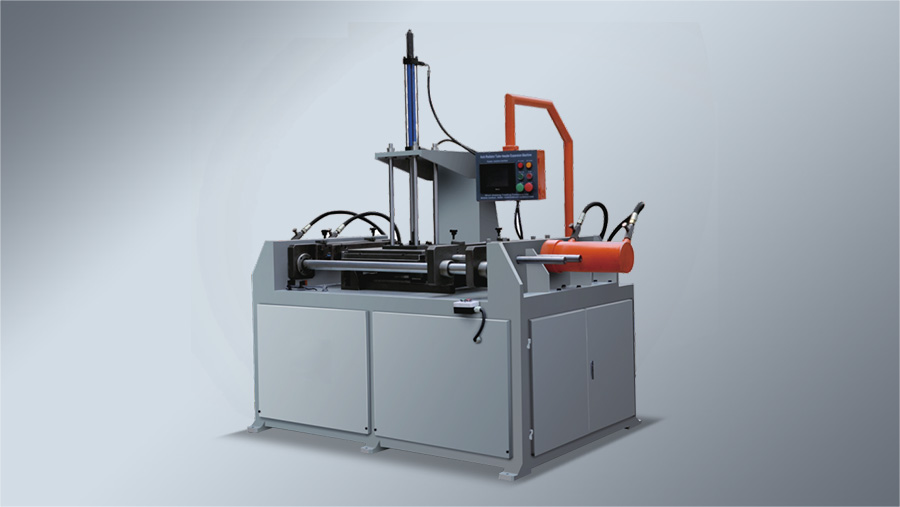

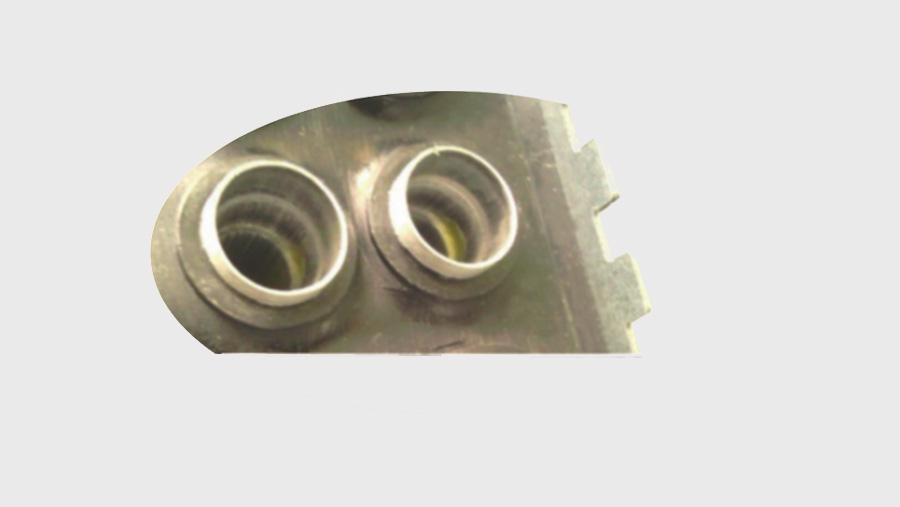

This equipment is to have round tube both ends to be flared synchronously,so to create the closed structure between header plate and round pipe after round pipe ends flaring.

It is high in automation and easy in operation,Operation will help to load and unload workpiece.



Description

Core dimension

Core height direction:350-780mm

Core Width direction:200-680mm

Hole flaring specification

as per Customer's requirements

Pipe Hole Quantity

as per Customer's requirements

Precision Tolerance Range

as per Customer's requirements

Pipe Processed per time

1 Set/Cycle

Production capacity

Around 240 Sets/Hour

Drive mode

Servo/Pneumatic Hydraulic/Pneumatic(Optional)

Overall Dimension

2800*1500*1700mm

Weight

2.3 T
