Automatic U-shape Tube Welding Machine

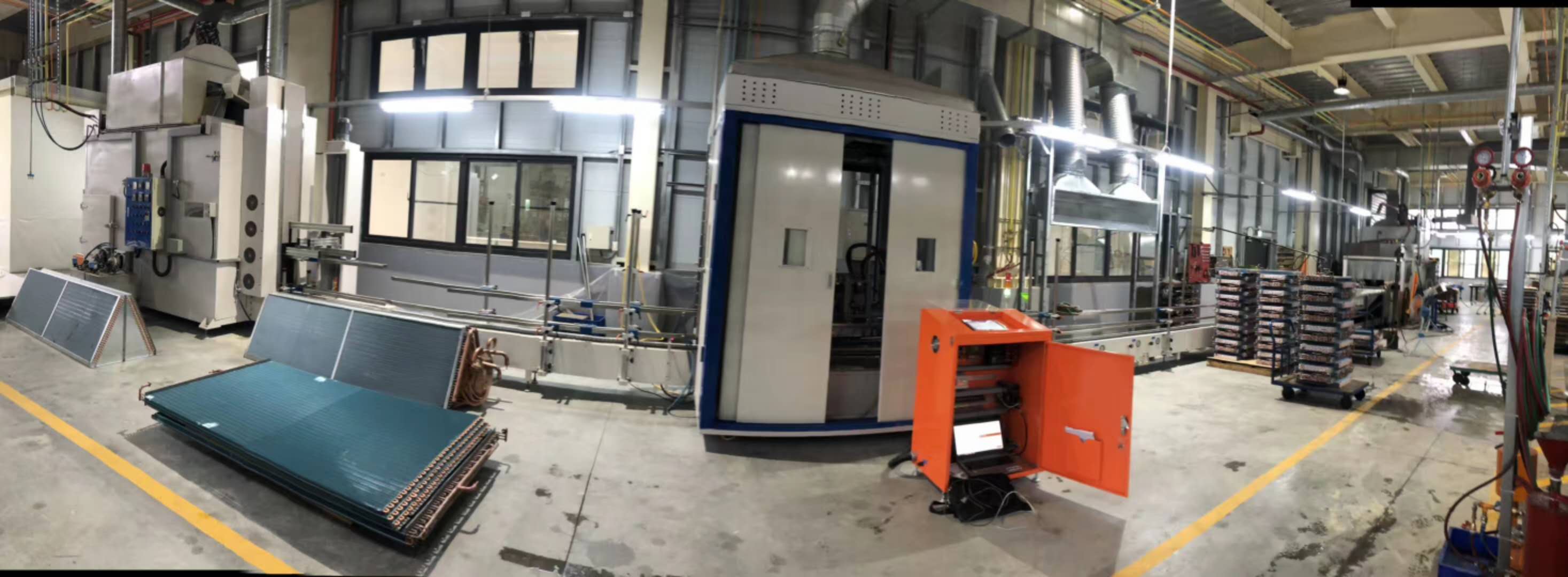

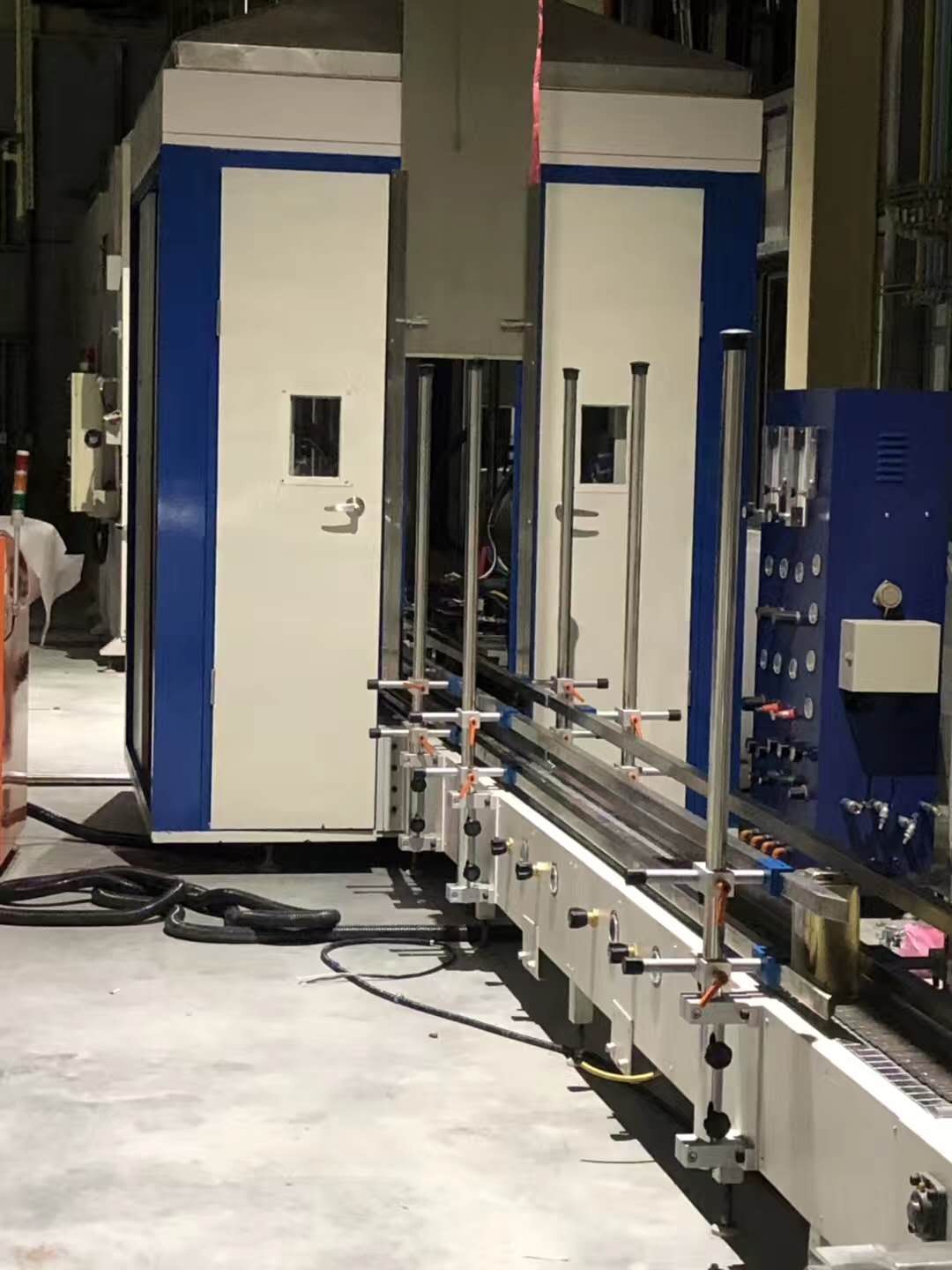

The machine is used for automatic welding of small U-shape hairpin tubes of air-conditioner heat exchanger.

Model

Automatic U-shape hairpin tube welding machine

Conveyance belt length (m)

Front 3.5m; middle 1.4m, and rear 3.5m( total: 8.4m)

Conveyance belt surface height (mm)

450 or 600

Gas source

Burning gas and pressure (Mpa)

LPG or natural gas; 0.09 ~ 0.15

Burning-supporting gas and pressure (Mpa)

Oxygen or compressed air; 0.4 ~ 1.0

Protective atmosphere and pressure (Mpa)

Nitrogen; 0.4 ~ 1.0

Cooling air and pressure (Mpa)

Compressed air; 0.4 ~ 1.0

Cooling water

Water pressure (MPa)

0.3

Flow rate(L/h)

≥ 120

Conveyance belt speed( mm/min)

600~6500; stepless speed regulation

Total power(kw)

1.3

Heat exchanger

Height (mm)

200~1300; 200~1600; 200~2500

Row quantity

1 to 4 rows
